Sibo has focused on potentiometers and sensors for 30 years.

C90JAM·C90JBM
C90JAM·C90JBM

C90JAM·C90JBM

Potentiometer-type Joysticks

瀏覽量： Time: 2023-01-09

    Characteristics：

  • For multi functional control & with cobra head shaped knob

  • C90JA: Potentiometer outside-mounted

  • C90JB: Potentiometer incorporated

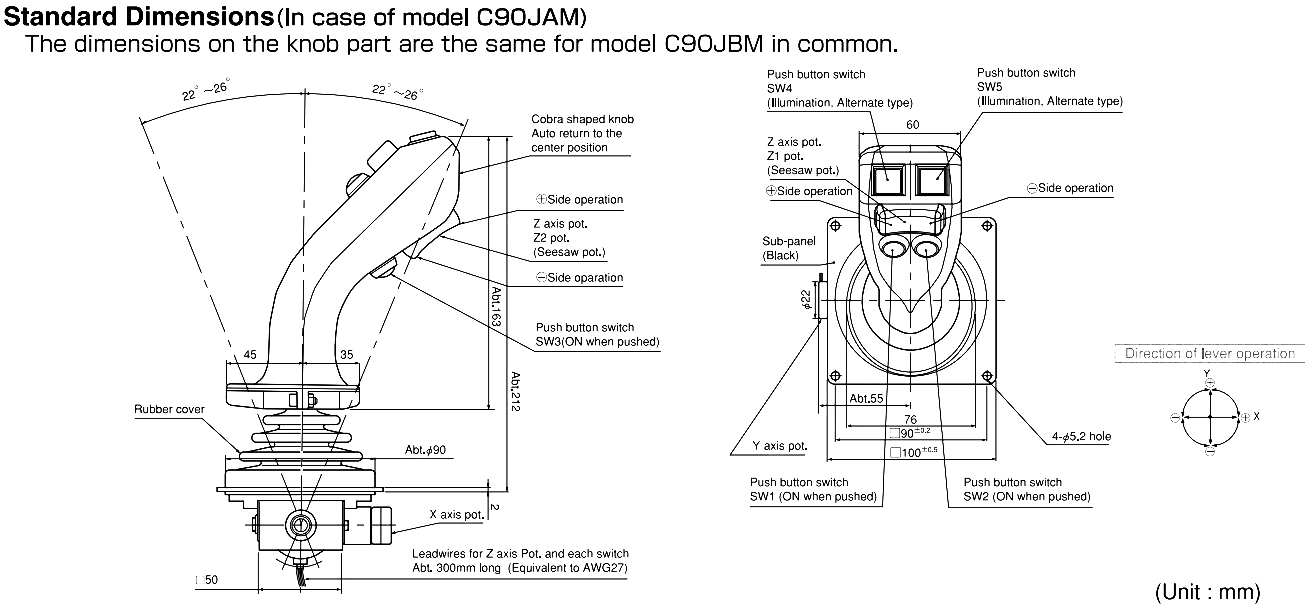

Dimension


Parameter

Specification of X and Y axes potentiometers

Type

C90JA type: SFCP22E outside mounted, C90JB type: Special resistance element is exclusively used for C90JB series

Total resistance value

10KΩ±15%

Independent linearity

±3%

Electrical rotating angle

44°±5°

Center return accuracy

50%±1.5%

Power rating

0.2W

Life expectancy

Approx. 5,000,000 operations

Specification of Z1 and Z2 axes potentiometers

Type

RMP30AF (Rocker switch unit))

Total resistance value

10KΩ±15%

Independent linearity

±3%

Electrical rotating angle

30°±5°

Center return accuracy

50%±3%

Power rating

0.1W

Life expectancy

Approx. 2,000,000 operations

Specification of push button switch (SW1, 2, 3 and 6)

Operating characteristics

Momentary type (ON when pushed)

Rating

500VDC,0.1A

Dielectric strength

1 minute at 1,000V AC

Insulation resistance

>1000MΩ（500VDC）

Life expectancy

Approx. 500,000 operations
